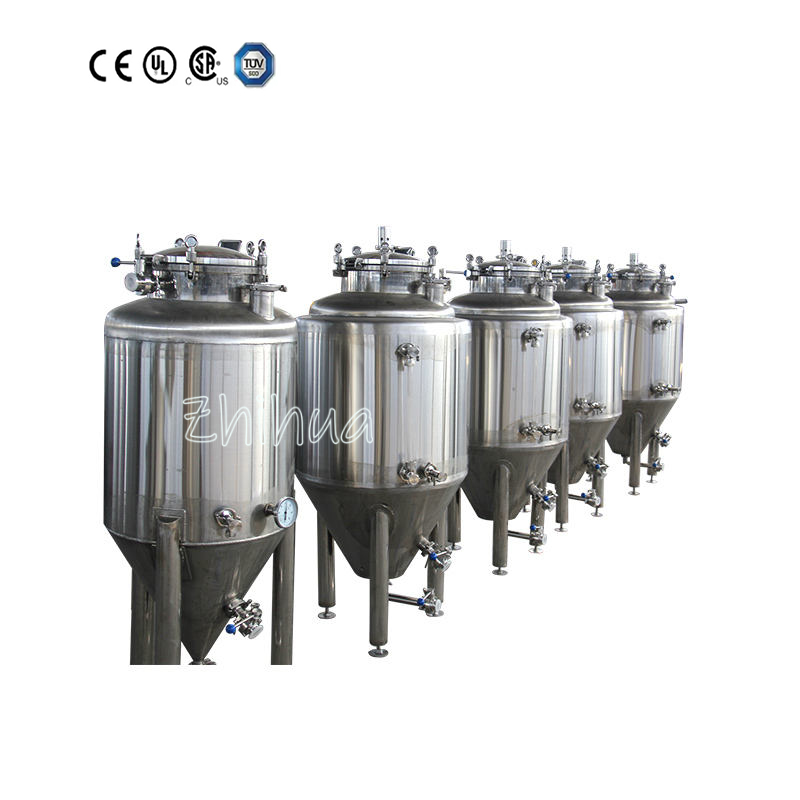

100L Fermentation System

Fermenter is 100L  with an average 25% Head Space. All tank have a Dish top, a Cylinder body and a 60-70° Cone Bottom. Certified stainless steel material for all tanks, with 100% TIG welded (Argon-arc welded) joints and seams with sanitary interior Polish. Dimple Plate jacket for Glycol cooling & high efficient Polyurethane foam insulation. All tanks use Tri-clamp connections, are designed for up to 0.2MPa and tested at 0.4MPa (we own the Manufacture License of Pressurized Vessels). Manway on the side or on the top. CIP cleaning ball and pressure regulating valve are available. We will provide turnkey project and service to meet your space and height restrictions.

This series tank is composed by fermentation tank,beer storage tank/bright beer tank and yeast tank. We have specification of 20L, 30L, 50L,100L,200L,300L,500L,800L,10hL,20hL,and we can also customize specification according to clients order.

1. Most of Fermention tanks are corn-shaped and can be used as beer storage tank.

2.All equipments are made of high quality stainless steel which meets the international food safety standards.

3.Adopt Polyurethane for thermal insulation with thickness of insulating layer over 60mm and intensity meets relatde standard.

4.Level and temperature of tanks are achieved by automatic or semiautomatic control.

Technical Parameters：

1.Thermal insulation material: Polyurethane (PU) foam, Insulation thickness: 75-100MM.

2.Manhole: Side manhole or top manhole

3.Design pressure 3bar, Working pressure: 15bar;

4.Bottom design: 60degree cone for easy to exist yeast.

5.Cooling method: Dimple cooling jacket

6.With: CIP arm with spray ball, pressure gauge, Mechanical pressure regulating valve, CO2 adding device, sampling valve, breath valve, Ice water solenoid valve, thermometer, etc.

7.Surface protection, weld slinging band with stainless steel leg, adjustable bolt to adjust leg height;

8. Argon arc welding, Inside and outside the polishing, No welding corner to ensure the quality of the fluid
