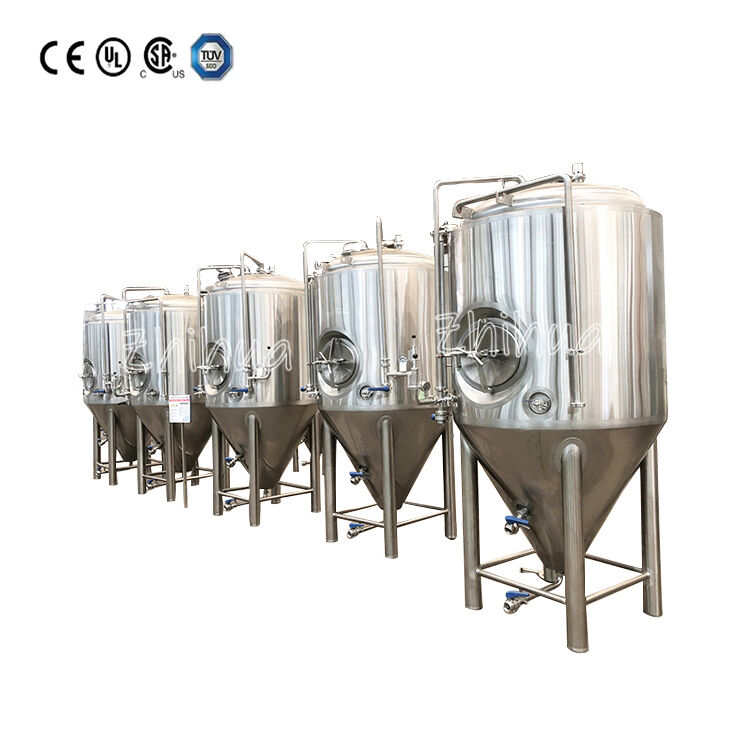

7BBL Beer fermenter tank

Descriptions of conical fermenter

SS beer conical fermenter tank for sale are also called CCT’s (Cylindrical Conical Tanks), FV’s (Fermentation Vessel), beer fermenter, beer fermentation tanks, primary fermenter or unitanks, as they are used both for fermenting and lagering.

Fermenting is the process during which the yeast transforms the wort into beer.

Lagering takes place after fermenting and is the time given to the beer to stabilize and age after fermenting.

Stainless steel fermenters can be individually temperature controlled through glycol jackets and are mostly equipped with accessories such as over pressure and under pressure valve, CIP cleaning jet, sanitary sample valve,manhole,etc

Fermenter&BBT System

-Capacity: 50L-30000L, 1bbl-100bbl, +25% Head space

-Interior shell thickness 3-6mm, Exterior shell=2mm

-100% TIG welding with pure argon gas shield

-Interior finish: pickled and passivated, external polished, 80mm insulated

-Test pressure 3 bar, working pressure 2 bar

-Glycol zones (Both on side and concial/bottom)

-60°/72°conical bottom for Fermener, Shadow less side man way

-Racking arm, Sample valve, Pressure relief valve on the top, Dry hopping on the top

-Mechanical relief valve 3 bar on CIP arm with pressure gauge

-Adjustable tank leveling pads
