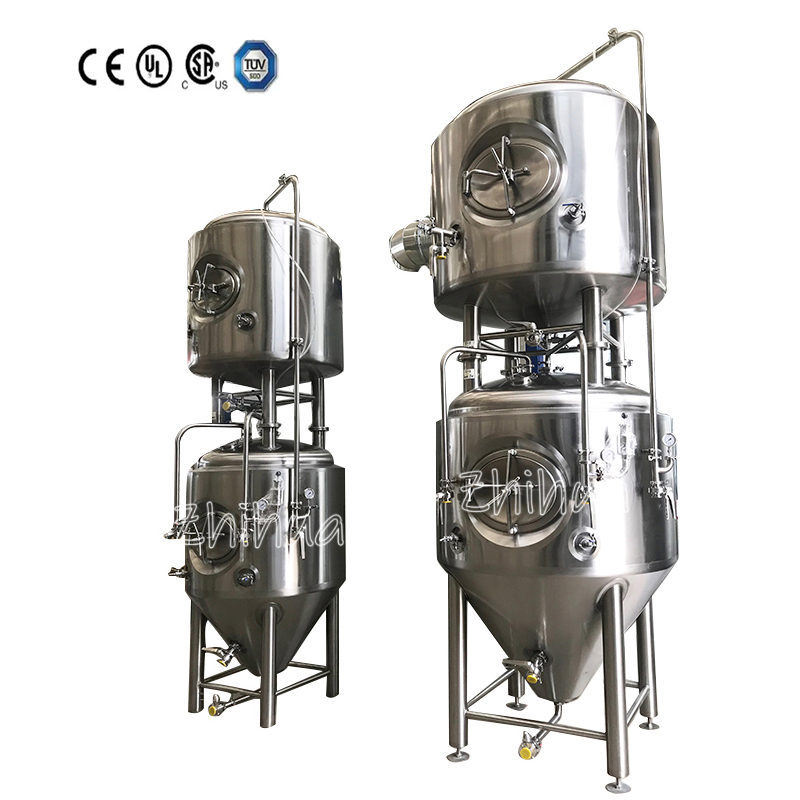

10BBL fermenter

We offers a wide array of fermenters(fermentation) and brite tanks(maturation) tanks that are designed accordingly to our customers’ specifications and their needs. Our fermenter and brite tanks come in three different generalized builds (customizable tanks are also available): single wall, un-jacketed and jacketed. All of our tanks can be pressurized (unless otherwise requested) and the fermenters have an added bonus of functioning as both a fermenter and BBT tank.

1).The main material is the SUS304 stainless steel sanitary.

2).An upper stainless steel dished head, the lower conical or bottom head head to facilitate the discharge of yeast, 100% TIG welding, clean and polish.

3).Design pressure of 0.2MPa, the test pressure 0.4MPa.

4).3-4 stainless steel tripod, height and level can be adjusted.

5).Inner wall thickness 3mm, heating preservation polyurethane foam, insulation thickness of 60~100mm, the thickness of the outer foreskin 2mm.

6).Cleaning the inner surfaces, polished to 0.4um.

Fermentation System Fermentation Tank :

Top manway/Side manway

Drying hop port to brew IPA

Glycol Dimple jacket

Carbonation port to fill CO2

Yeast adding tank and Bright beer tank are option.

Cooling system

1).Working principle: Firstly, the refrigerating unit cools the glycol water tank, and then to cool the fermenter by glycol water circularly; And also cool the hot through plate heat exchanger.

2).Note: Cl- is forbidden in the glycol water tank; glycol water must be diluted to 30%-40%.

Refrigerating unit: adopt international brand compressor, evaporator and condenser.

3)Advantage: new type plate heat exchanger can improve 20% than copper coil about the cooling effect

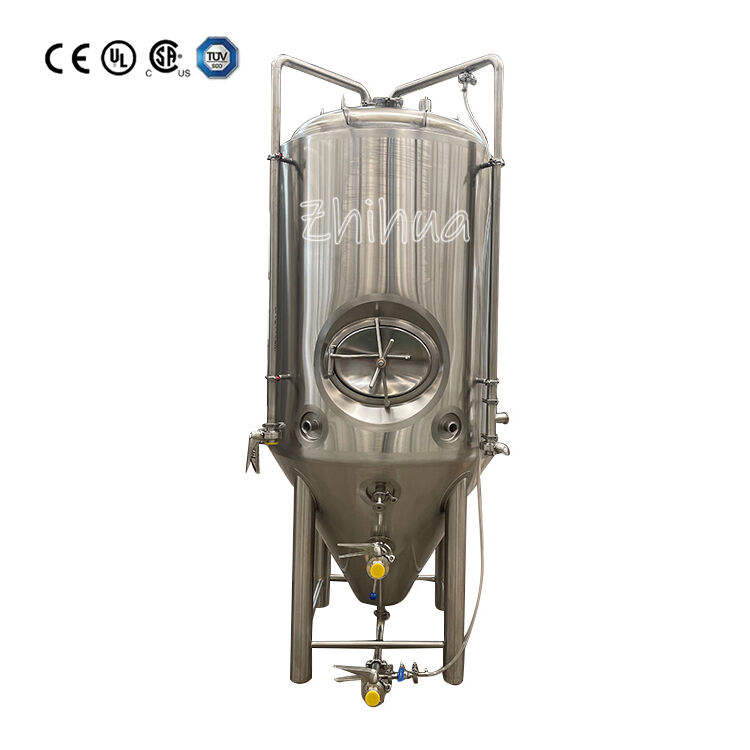

The conical fermentation tanks have a dished top with cylindrical body. The 60 degree conical bottom is ideal for fermenting and improving the quality of beer as well as breeding yeast. All the tanks are food grade stainless steel 304 with a 3mm thickness for 100l-5000l, but larger tank is 4mm thickness. The cooling system is a dimple jacket with insulated polyuranthane filling.

It is 100% stainless steel. All tanks comes with 25% head space on top of working volume. All cone come with racking arm. It allows you to start your siphon with the racking arm horizontal, and rotate it slowly downward until you just start picking up yeast sediment.
