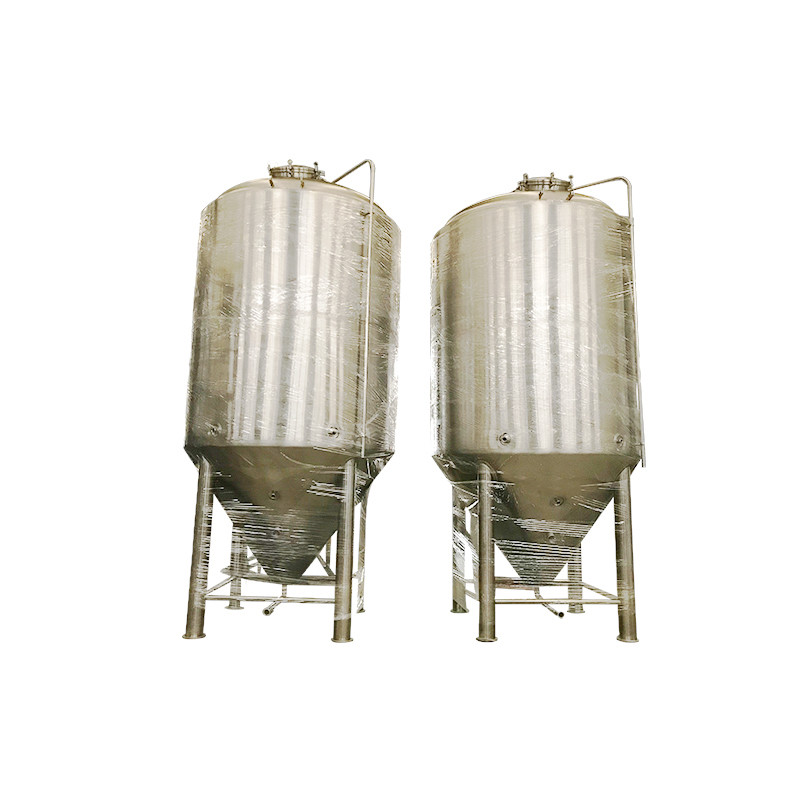

3500L craft beer brewing fermenter

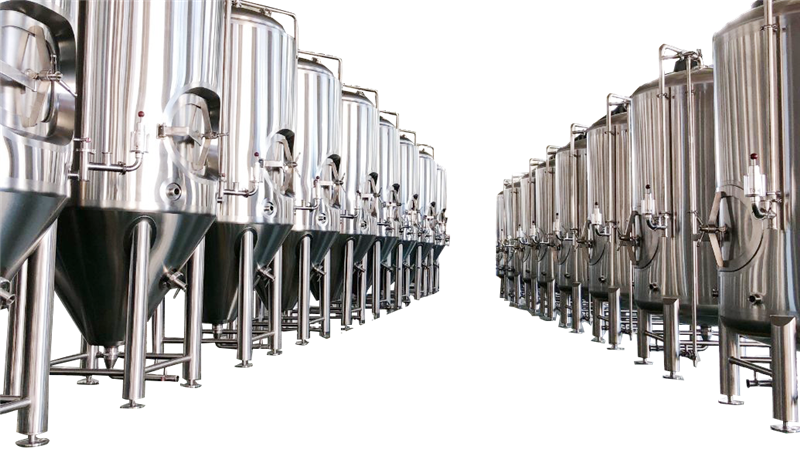

Fermenter system is composed of fermenter tank, bright beer tank, yeast added tank, etc.

The traditional design of the fermenter’s cylinder and cone is double-jacket, the seal head is single-jacket, based on the original design

Fermentation is the process by which yeast converts the glucose in the wort to ethyl alcohol and carbon dioxide gas, giving both its alcohol content and its carbonation. To begin the fermentation process, the cooled wort is transferred into a fermenation vessel to which the yeast has already been added.

All tanks are made by SUS304 stainless steel, which meet domestic and international food safety and hygienic standards.

They are the cylindrical cone bottom tank, the cone are (60-90) degrees. Its externals are made by stainless steel drawing board, connected by TIG welding. Its internal components have a protective film by pickling passivation, and equipped with 80mm polyurethane insulation

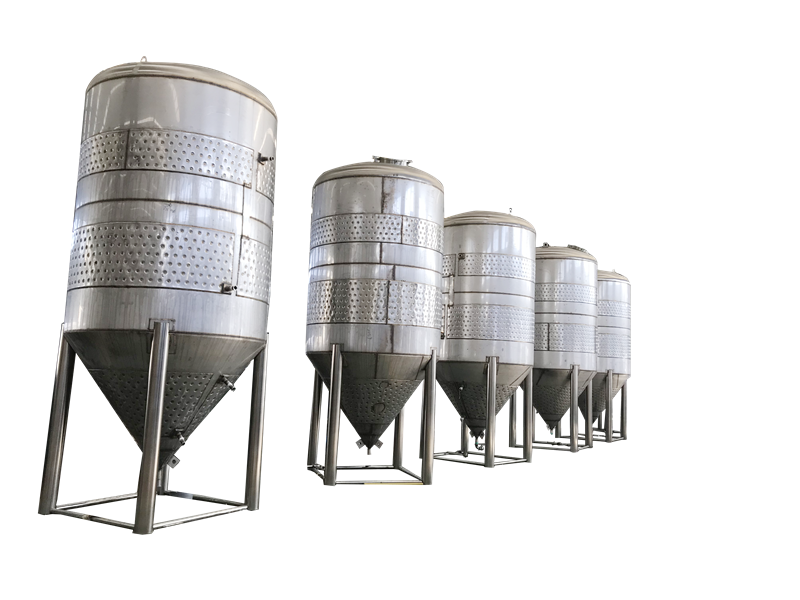

The tanks with the dimple plate on the cone and the side, are cooled by glycol water or alcohol water. Automatic temperature control for each tank.

Our fermenter specifications:

Top dished head,

material SUS304, interior sand polished,

wire drawing polished plate finish, welding seams brushed

dimple type glycol jackets, PU foam insulation, thickness 100mm

side manhole, thermometer well,

rotatable CIP spray ball, CIP arm, sample valve,

mechanical pressure relief valve, pressure gauge,

glycol solenoid valves,

carbonastion stone for optional

bottom drain port and safety valve, racking arm,

associated valves and fittings

stainless steel legs, with screw assembly to adjust leg height
